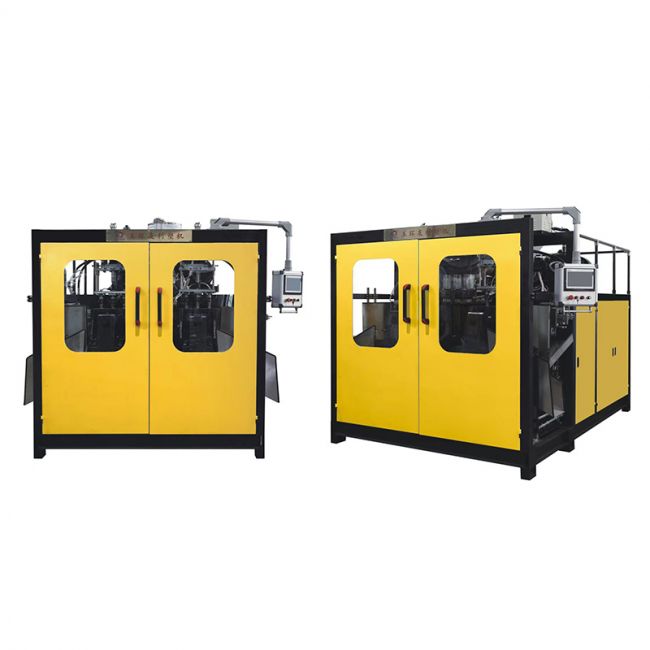

2L-5L Fully Automatic Extrusion Blow Moulding Machine
SKU: YLYD200
Suitable Capacity: 2L-5L Plastic Hollow Products
Suitable Material: PP, HDPE, PETG
Application Industry: Food & Beverage / Daily Chemicals / Lubricant Oil / Agrochemical
Drive System Type: Servo Hydraulic
Extrusion Method: Continuous Extrusion
MOQ: 1 Piece
Payment Method: T/T
Support: 24/7 Video / 1-Year Warranty
✅✅✅ Get a Quote – Single Machine or Full Line
Technical Parameters
| Name | Unit | Detail | Name | Unit | Detail |
|---|---|---|---|---|---|
| Max.product volume | L | 2-5L | Max.siza of mold | MM | 400*450 |
| Dry cycle | PC/H | 220 | Template size | MM | 360*450 |
| Number of mold head | 1-6 | Mold stroke | MM | 200-600 | |
| Screw diameter | MM | 75 | Max. die diameter | MM | 250 |
| Screw L/D ratio | L/D | 25 | Blowing pressure | MPA | 0.6 |
| Screw drive power | KW | 22 | Air volume | m3/MIN | 0.8 |
| Screw heating capacity | KW | 18 | Cooling water pressure | MPA | 0.3 |
| No. of heating zone | ZONE | 4 | Water consumption | L/MIN | 60 |
| Output of HDPE | KG/H | 80 | Size of machine | LxWxH | 4.2*2.5*2.5 |
| Oil pump drive power | KW | 18.5 | Weight of machine | TON | 8 |
| Clamping force | KN | 120 |
Industries We Serve and Support
MORE ABOUT YOULI COMPANY
Why Choose YOULI Blow Molding Machines
Strong R&D Capabilities
High Efficiency & Energy Saving
Providing Turnkey Solutions
Excellent After-Sales Support
MORE ABOUT YOULI COMPANY
Providing Turnkey Extrusion Blow Molding Solutions
Machine Selection & Configuration
We help you choose the right blow molding machine based on your product type, production volume, and material requirements.
Mold Design & Manufacturing
Our team provides customized mold solutions — from 2D/3D design to precise mold fabrication — ensuring optimal product quality and efficiency.
Auxiliary Equipment Integration
We supply and integrate supporting systems such as chillers, air compressors, mold temperature controllers, and conveyors for a complete line.
Installation, Commissioning & Training
Our engineers handle on-site installation, machine calibration, and hands-on training to ensure your production starts smoothly and safely.
