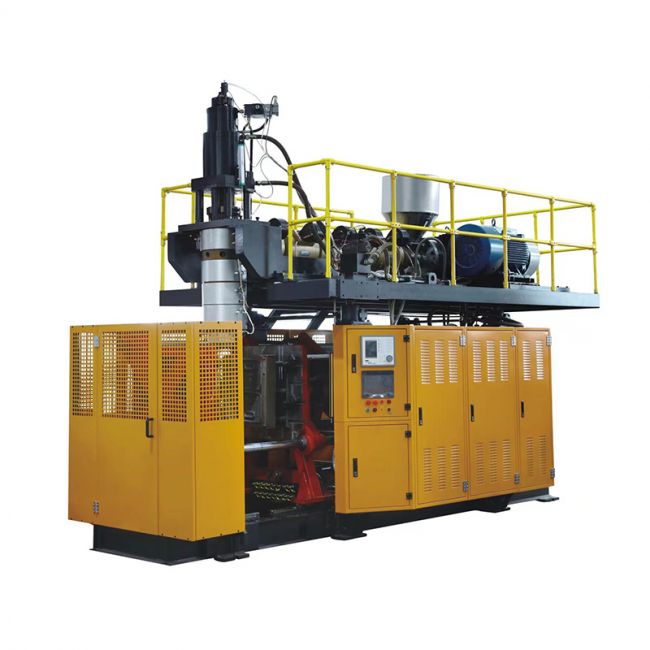

Fully Automatic Blowing Machine for Hollow Plastic Products
SKU: YLYD600
Suitable Capacity: 50L Plastic Hollow Products
Suitable Material: HDPE
Application Industry: Daily Chemicals / Agrochemical / Chemical & Industrial
Drive System Type: Servo Hydraulic
Extrusion Method: Intermittent Extrusion
MOQ: 1 Piece
Payment Method: T/T
Support: 24/7 Video / 1-Year Warranty
✅✅✅ Get a Quote – Single Machine or Full Line
Technical Parameters
| Name | Unit | Detail |
|---|---|---|
| Max. product volume | L | 60 |
| Dry cycle | PC/H | 30 |
| Screw diameter | MM | 100 |
| Screw L/D ratio | L/D | 28 |
| Screw drive power | KW | 55 |
| Screw heating capacity | KW | 30 |
| No. of the heating zone | ZONE | 5 |
| Output of HDPE | KG/H | 150 |
| The oil pump drives the power | KW | 22 |
| Clamping force | KN | 220 |
| Max. size of mold | MM | 750*850 |
| Template size | MM | 900*950 |
| Mold stroke | MM | 320—900 |
| Max. die diameter | MM | 400 |
| Blowing pressure | MPA | 0.8 |
| Air volume | m3/MIN | 0.8 |
| Cooling water pressure | MPA | 0.3 |
| Water consumption | L/MIN | 80 |
| Size of machine | LxWxH | 5.8*3.0*4.5 |
| Weight of machine | TON | 11 |
Industries We Serve and Support
MORE ABOUT YOULI COMPANY
Why Choose YOULI Blow Molding Machines
Strong R&D Capabilities
High Efficiency & Energy Saving
Providing Turnkey Solutions
Excellent After-Sales Support
MORE ABOUT YOULI COMPANY
Providing Turnkey Extrusion Blow Molding Solutions
Machine Selection & Configuration
We help you choose the right blow molding machine based on your product type, production volume, and material requirements.
Mold Design & Manufacturing
Our team provides customized mold solutions — from 2D/3D design to precise mold fabrication — ensuring optimal product quality and efficiency.
Auxiliary Equipment Integration
We supply and integrate supporting systems such as chillers, air compressors, mold temperature controllers, and conveyors for a complete line.
Installation, Commissioning & Training
Our engineers handle on-site installation, machine calibration, and hands-on training to ensure your production starts smoothly and safely.
